PV-THC-Y1/3 Branch Connector
As a direct manufacturer, we provide high-performance PV Connector for utility-scale solar projects. Engineered with high-quality copper contacts to handle significant electrical loads with minimal power loss and heat generation. Features a reliable “snap-in” locking mechanism that ensures a permanent, vibration-proof connection even under mechanical stress. Equipped with premium O-rings to achieve an IP67 rating, ensuring complete protection against moisture and corrosion.
- Rated current:30A
- Rated voltage:1000VDC(IEC) 800DC(UL)
- Ambient temperature range:-40℃ ~+90℃ (ec)
- Degree of protection:IP67mated IP2X unmated
- Contact resistance of plug connectors:0.5mΩ
Key Features
-
PV Branch Connectors are components used for parallel wiring of solar modules.
- Widely applied in rooftop and ground-mount PV systems, they enable the efficient combination of multiple strings into a single output, streamlining the overall DC circuit.

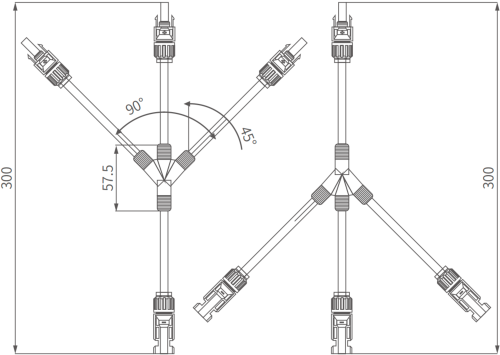

Dimensions
FAQs
What makes MC4 connectors the preferred choice for solar installations worldwide?
MC4 connectors are the global industry standard for PV systems, offering low-resistance electrical connections that maximize energy transfer efficiency. Their robust, weatherproof design ensures long-term reliability across a wide range of installation environments.
Are MC4 connectors compatible with all major inverter and panel brands?
Yes. MC4 connectors follow internationally recognized standards, making them compatible with the majority of solar panels and inverters available on the market, simplifying procurement and reducing compatibility risk.
Do you have stock for the product?
Yes, we have them in stock for most popular types of connectors.
